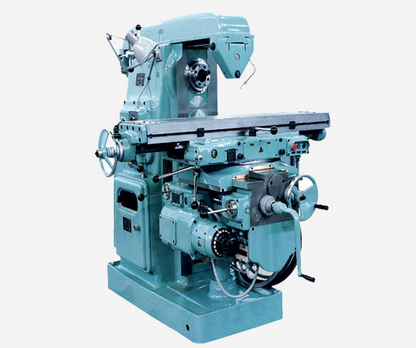

Item specification |
Unit |
X6132 |
X6232B |
X6232C |
X6232x16 |
X6232Cx16 |
|
Table area(width*length) |
mm |
320x1320 |
320x1320 |
320x1320 |
320x1600 |
320x1600 |
|
T-slot(Number of slot-width*pitch) |
mm |
3-18x70 |
3-18x70 |
3-18x70 |
3-18x70 |
3-18x70 |
|
Table swivel angle |
|
±45º |
±45º |
±45º |
±45º |
±45º |
|
Max weight of workpiece |
kg |
500 |
500 |
500 |
500 |
500 |
|
Longitudinal/Transversal/Vertical(manual) |
mm |
700/255/320 |
800/255/320 |
|
Longitudinal/Transversal/Vertical(power) |
mm |
680/240/300 |
780/240/300 |
|
horizontal Spindle motor |
kw |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
vertical spindle motor |
kw |
|
3 |
3 |
3 |
3 |
|
Horizontal Spindle taper |
|
ISO50 |
ISO(50/40) |
|
vertical spindle taper |
|
XT50 |
XT(50/40) |
|
horizontal Spindle speed range |
r/min |
30-1500 |
|
vertical spindle speed range |
r/min |
30-1500 |
90-1400 |
125-2000 |
125-1400 |
125-2000 |
|
Distance from center line of horizontal spindle to table surface |
mm |
30-350 |
30-350 |
30-350 |
30-350 |
30-350 |
|
Distance from vertical spindle nose to table surface |
mm |
|
40-425 |
250-570 |
40-425 |
250-570 |
|
Vertical milling head max. swivel angle |
º |
|
360º |
360º |
360º |
360º |
|
Feed speed(X、Y/Z) |
mm/min |
18 steps23.5-1180/8-394 |
|
Rapid feed(X、Y/Z) |
mm/min |
2300/770 |
2300/770 |
2300/770 |
2300/770 |
2300/770 |
|
Feed motor power(X、Y/Z) |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Net weight |
kg |
2650 |
3000 |
3000 |
3100 |
3100 |
